Bryan Leung

Course Pacing Redesign

Course Pacing set one pace for a whole course, and usage was about 1%. I redesigned it so each section and student can have its own pace.

Product
Canvas LMS
Role
Senior Product Designer
Team
1 product manager, 6 engineers
Scope
Design, research
Year
2023
Redesigned Canvas Course Pacing screens.

Summary

Problem
It could only pace a whole course. Instructors called that unusable, and usage was about 1%, even counting anyone who only opened it.
Solution
Sections and Students tabs, a full-screen view for each pace, blackout dates and pending changes.
Result
Released to beta in the middle of a term. Courses using pacing went from under 1% to 1.05% in the first 14 days, too early to tell whether instructors would adopt it.

The problem

In a rolling-enrollment course, students start on different dates, so every due date differs by student. Instructors entered them by hand, and again for every extension.

A few major US universities run courses this way, some with more than 50,000 students. They are large accounts for Instructure.

Course Pacing calculates the dates from a pace. Its first version set one pace for the whole course.

The feature is essentially useless to me unless I can set paces for my students individually.

Three things made it hard.

  • Scale. The dropdown for switching between sections and students stops working past about 25 students.
  • Three levels. A course, a section and a student can each have a pace.
  • No documentation. The first version's decisions weren't written down, so the engineers who built it were the best source.

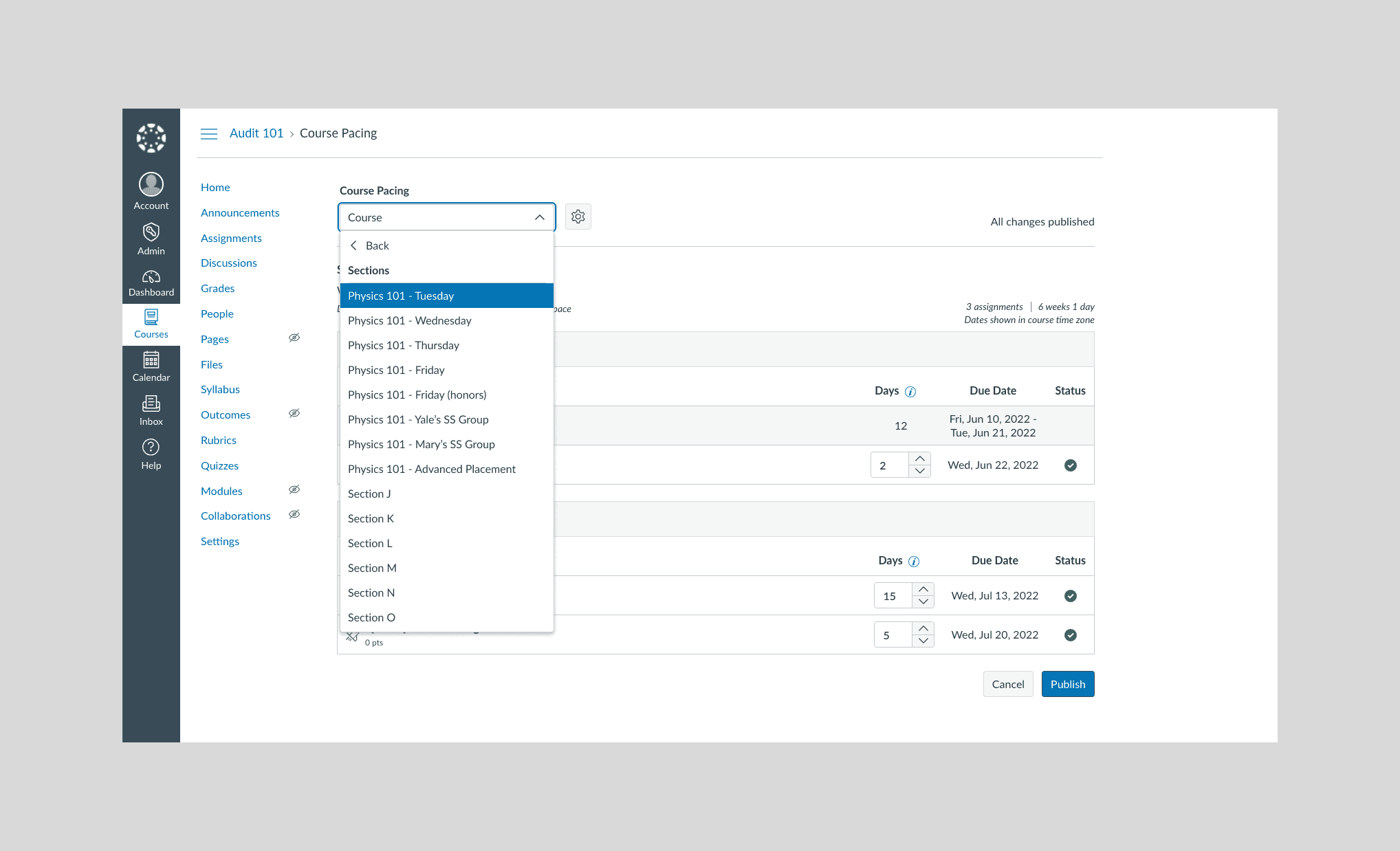

The original Course Pacing page. The original page with the student and section dropdown open.
The original design, and its dropdown for choosing a section or student.

Design decisions

Tabs in place of a dropdown

The main alternative I explored kept the dropdown and added drill-downs for choosing a student. It couldn't work in a course with thousands of students. Sections and Students each get a tab instead, so a large course becomes a list to scan.

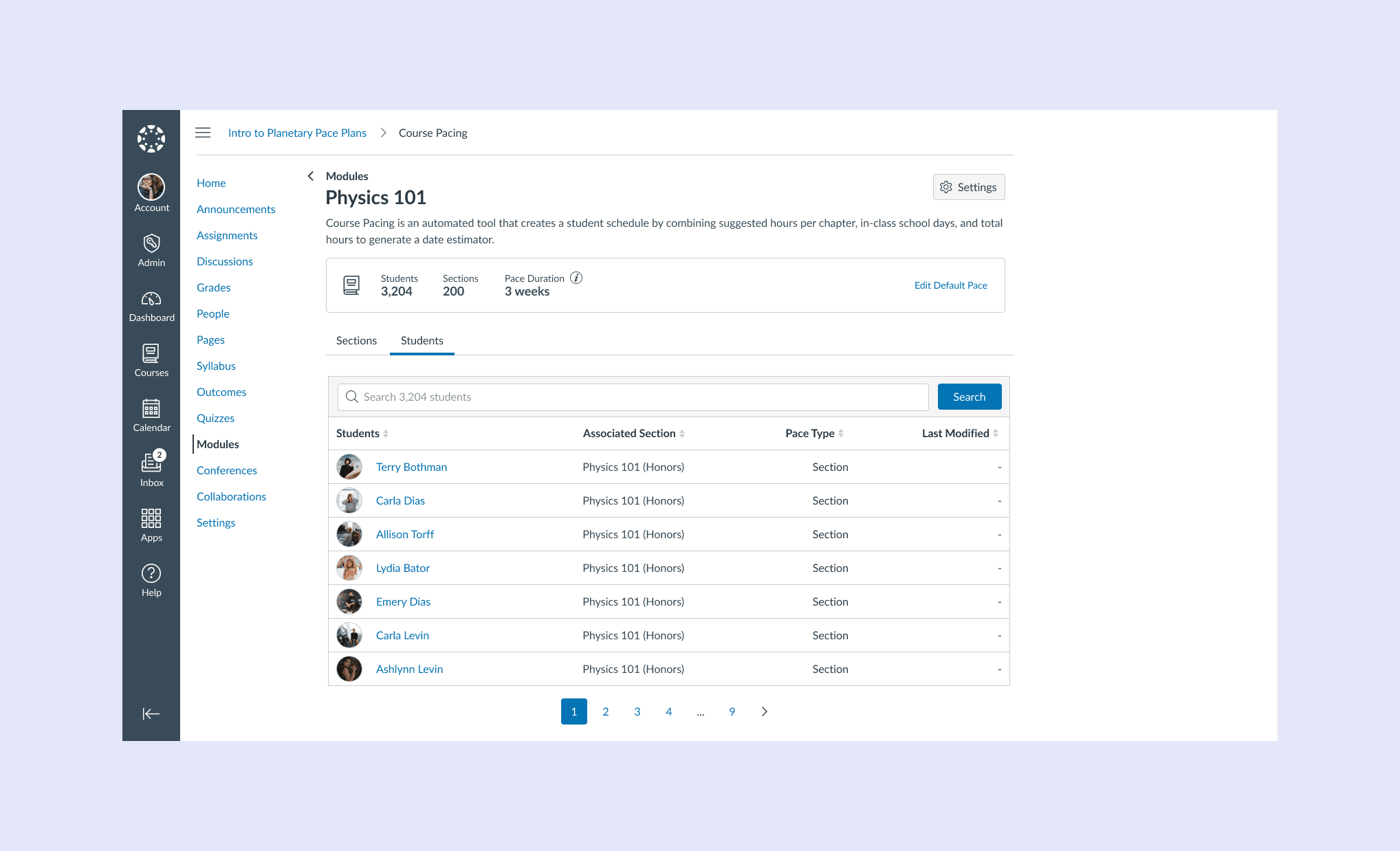

Redesigned Course Pacing page with Sections and Students tabs.
The redesigned page with Sections and Students tabs.

A full-screen view for each pace

Selecting a section or student opens its pace full screen.

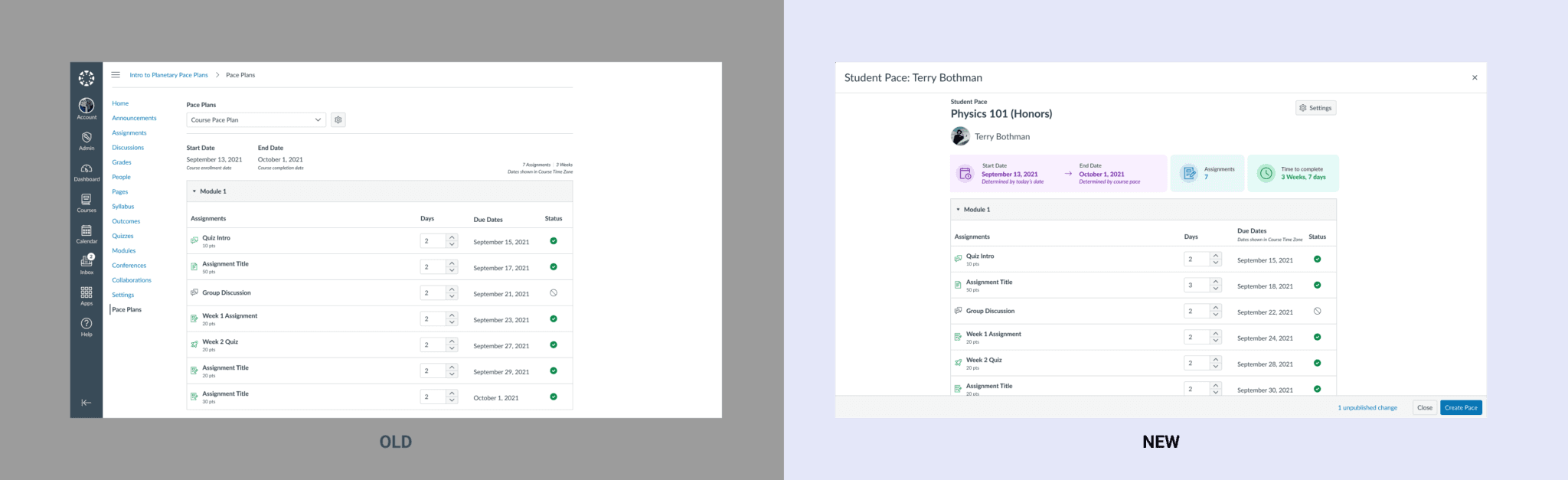

The old Course Pacing page beside the new student pace view.
Old (left) and new (right).

A page that says where you are

A title, a one-line description, and more prominent stats and default pace. The original had no title.

Added in the same release

Both came from faculty feedback that the product manager gathered on customer calls.

  • Blackout dates, so nothing falls due inside a set date range.
  • A way to view and reset pending changes.
Student pace view with assignment durations and due dates. Blackout dates dialog.

Open the Course Pacing prototype in Figma

Validation and delivery

  • Testing. Three moderated sessions with administrators and instructors at US universities, plus surveys. The product manager set the goals and I ran the sessions, asking each person to do real tasks in the prototype, such as creating a pace and setting durations for their students. All three were positive. I didn't read that as a prediction of usage.
  • Accessibility. Reviewed with our accessibility engineers for screen reader and keyboard focus issues.
  • Build. Several sprints. I answered usability and accessibility questions and proposed alternatives when something couldn't be built as designed.

Outcome

  • The redesign went to beta in the middle of a term, together with the new features, so their effects can't be separated.
  • In the first 14 days, courses with pacing turned on went from under 1% to 1.05%, from the product manager's numbers.
  • That window couldn't show much. Instructors set up a course's structure before a term starts and rarely change it once it is running. Nobody checked again when the next term began.
  • We never set a measure of success before launch.

Reflection

  • I would agree on the success measure before launch, count section and student paces separately from course paces, and read the result at the start of the next term, when instructors actually set up their courses.
  • Adjusting the duration of individual items is still inefficient. I wanted to redesign it. The engineers resisted, because untangling the existing code would have taken too long.
  • That argument is weaker now that AI tools can read an unfamiliar codebase quickly. Today I would start from the design, not from what the old code allows.
